Technical Data
| Mod. | 300GSA |
| Blade | ø mm 300 |
| Blade turns/1′ | n° 310 |
| Motor V.220 single phase | kw 0,180 |
| Motor V.220/380-400 three phase | kw 0,270 |
| Carriage movement | mm 280 |
| Thickness adjuster | mm 14 |
| Cut’s capacity | ø mm 215
mm 195×245 |
| Net weight | kg 18 |

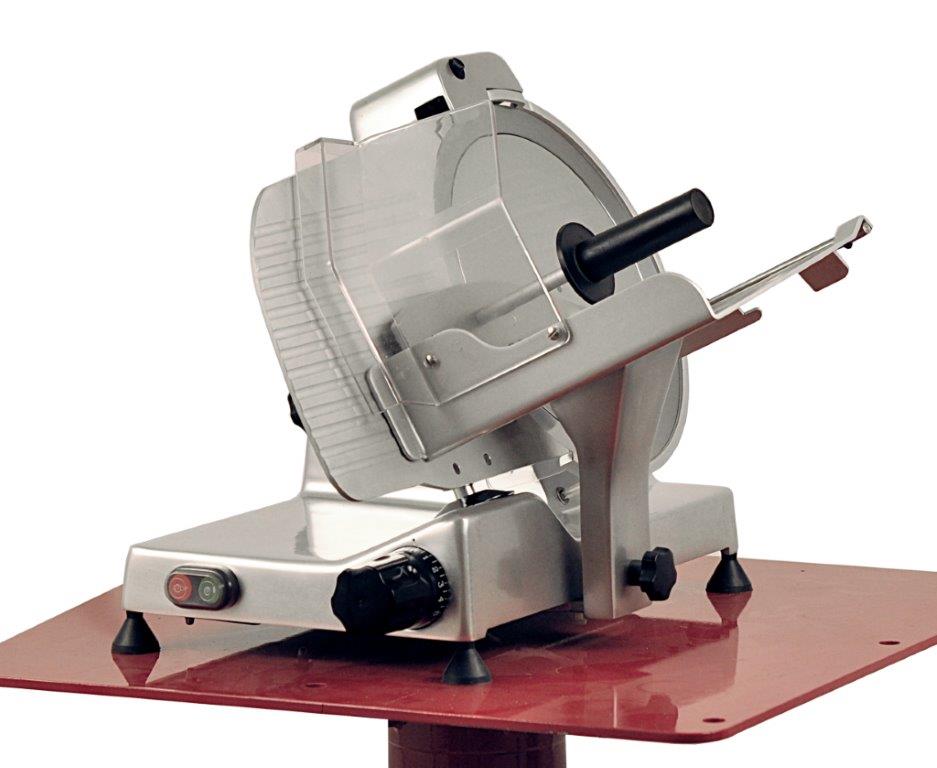

300GSA
- Simple line
- Blade diameter 300mm.
- Simple but robust and functional.
- Excellent performance at a very special price.
- Aluminium.
- The diameters 275mm and 300mm are suitable small shops with the need to take advantage of small spaces.
Dimensions
| Ref. | Description | 300GSA | Technical Drawing |
| A | Feet distance | 450 | |
| B | Footprint cut | 500 | |
| C | Max. distance beginning/end movement | 640 | |
| D | Feet distance | 320 | |
| E | Max. width distance | 530 | |
| F | Height | 410 | |
| G | Max. height distance | 510 | |
| H | Table length | 245 | |
| I | Table width | 260 |
Packaging
| Height | mm 620 |
| Width | mm 600 |
| Depth | mm 560 |
| Net weight | kg 18 |
| Gross weight | kg 21 |
| Volume m3 | 0,229 |
