Technical Data
| Mod. | 30E |
| Blade | ø mm 300 |
| Blade turns/1′ | n° 310 |
| Motor V.220 single phase | kw 0,180 |
| Motor V.220/380-400 three phase | kw 0,270 |
| Carriage movement | mm 270 |
| Thickness adjuster | mm 12 |
| Cut’s capacity | ø mm 205 mm 185X230 |
| Net weight | kg 20 |

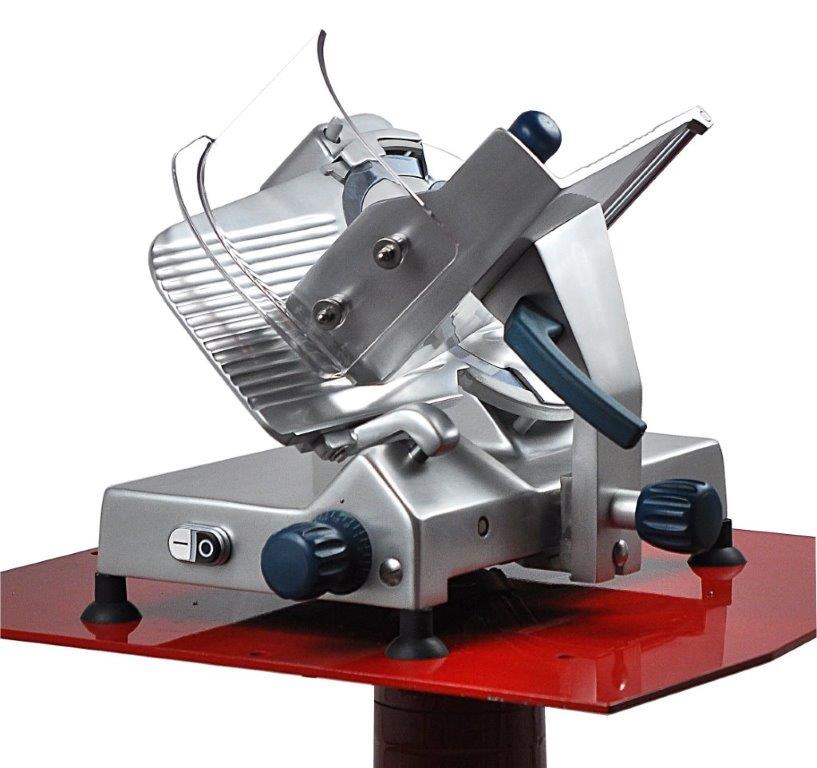

30E
- Gravity feed slicer 45°.
- Blade diameter 300 mm.
- Model 30E has been designed for small shops, having the necessity to utilize small spaces and getting professional performances.
Dimensions
| Ref. | Description | 30E | Technical Drawing |
| A | Feet distance | 485 | |
| B | Footprint cut | 560 | |
| C | Max. distance beginning/end movement | 630 | |
| D | Feet distance | 325 | |
| E | Max. width distance | 475 | |
| F | Height | 470 | |
| G | Max. height distance | 490 | |
| H | Table length | 230 | |
| I | Table width | 230 |
Packaging
| Height | mm 620 |
| Width | mm 660 |
| Depth | mm 560 |
| Net Weight | kg 20 |
| Gross Weight | kg 22,5 |
| Volume m3 | 0,229 |
