Technical Data
| Mod. | 350VBI/L |
| Blade | ø mm 350 |
| Blade turns/1′ | n° 210 |
| Motor V.220 single phase | kw 0,370 |
| Motor V.220/380-400 three phase | kw 0,370 |
| Carriage movement | mm 370 |
| Thickness adjuster | mm 16 |
| Cut’s capacity | ø mm 260 mm 260X315 |
| Net weight | kg 45 |

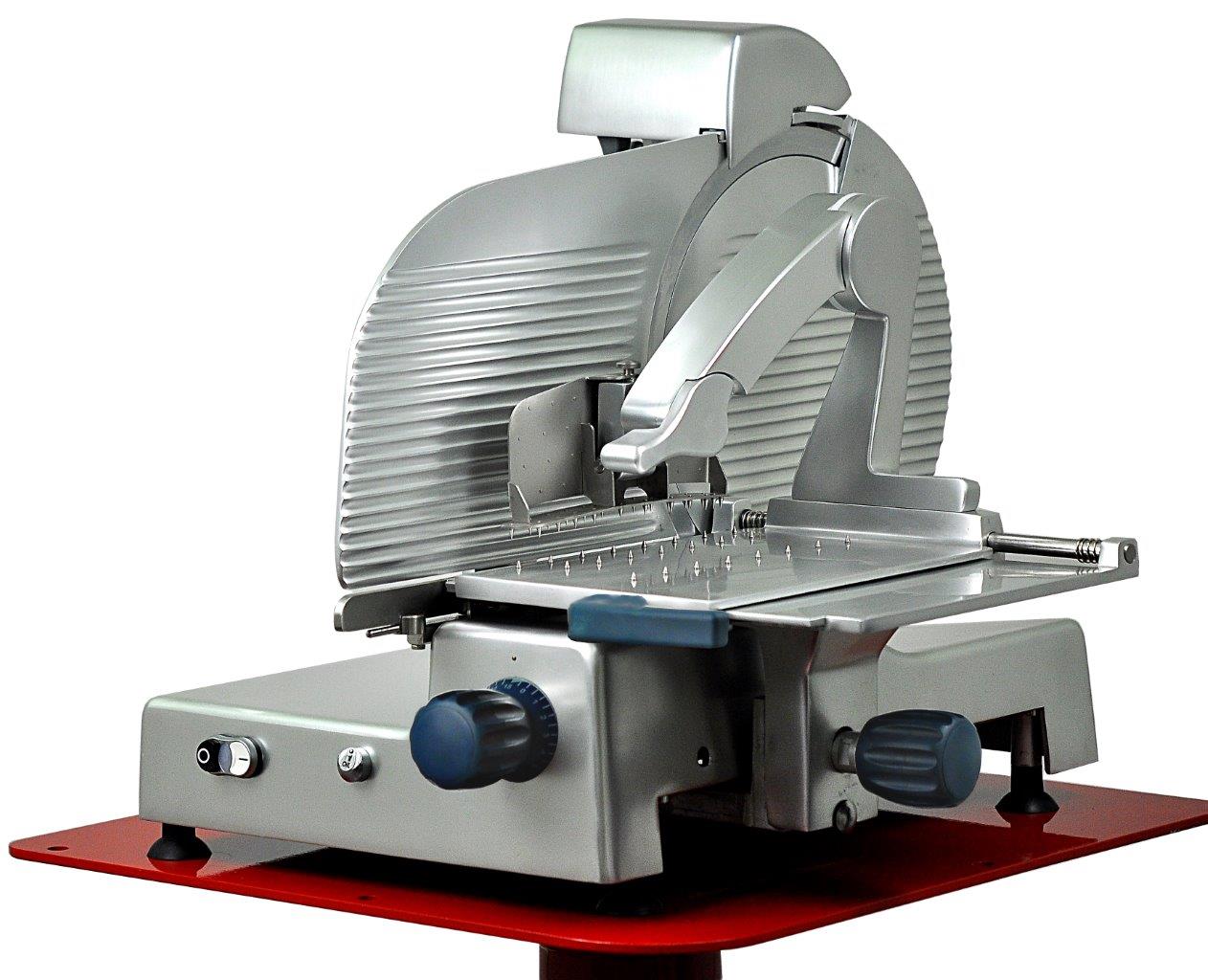

350VBI/L
- Blade Diameter 350 mm.
- Double sliding plate and a jointed handgrip.
- Highly innovative design with rounded off line and without edges and screws visible.
- Very easy to clean, it is suitable for restaurants and supermarkets.
- This model is equipped with a special arm protected, which makes it easier to clean the boom, and removable stainless bracket grip.
Dimensions
| Ref. | Description | 350VBI/L | Technical drawing |
|---|---|---|---|
| A | Feet distance | 600 | |
| B | Footprint cut | 720 | |
| C | Max. distance beginning/end movement | 850 | |
| D | Feet distance | 445 | |
| E | Max. width distance | 720 | |
| F | Height | 590 | |
| G | Max. height distance | 650 | |
| H | Table length | 330 | |
| I | Table width | 365 |
Packaging
| Height | mm 760 |
| Width | mm 840 |
| Depth | mm 720 |
| Net Weight | kg 45 |
| Gross Weight | kg 52 |
| Volume m3 | 0,46 |
