Technical Data
| Mod. | 400TC |
| Blade | ø mm 400 |
| Blade turns/1′ | n° 220 |
| Motor V.220 single phase | kw 0,370 |
| Motor V.220/380-400 three phase | kw 0,370 |
| Carriage movement | mm 365 |
| Thickness adjuster | mm 16 |
| Cut’s capacity | ø mm 290 mm 290X330 |
| Net weight | kg 54 |

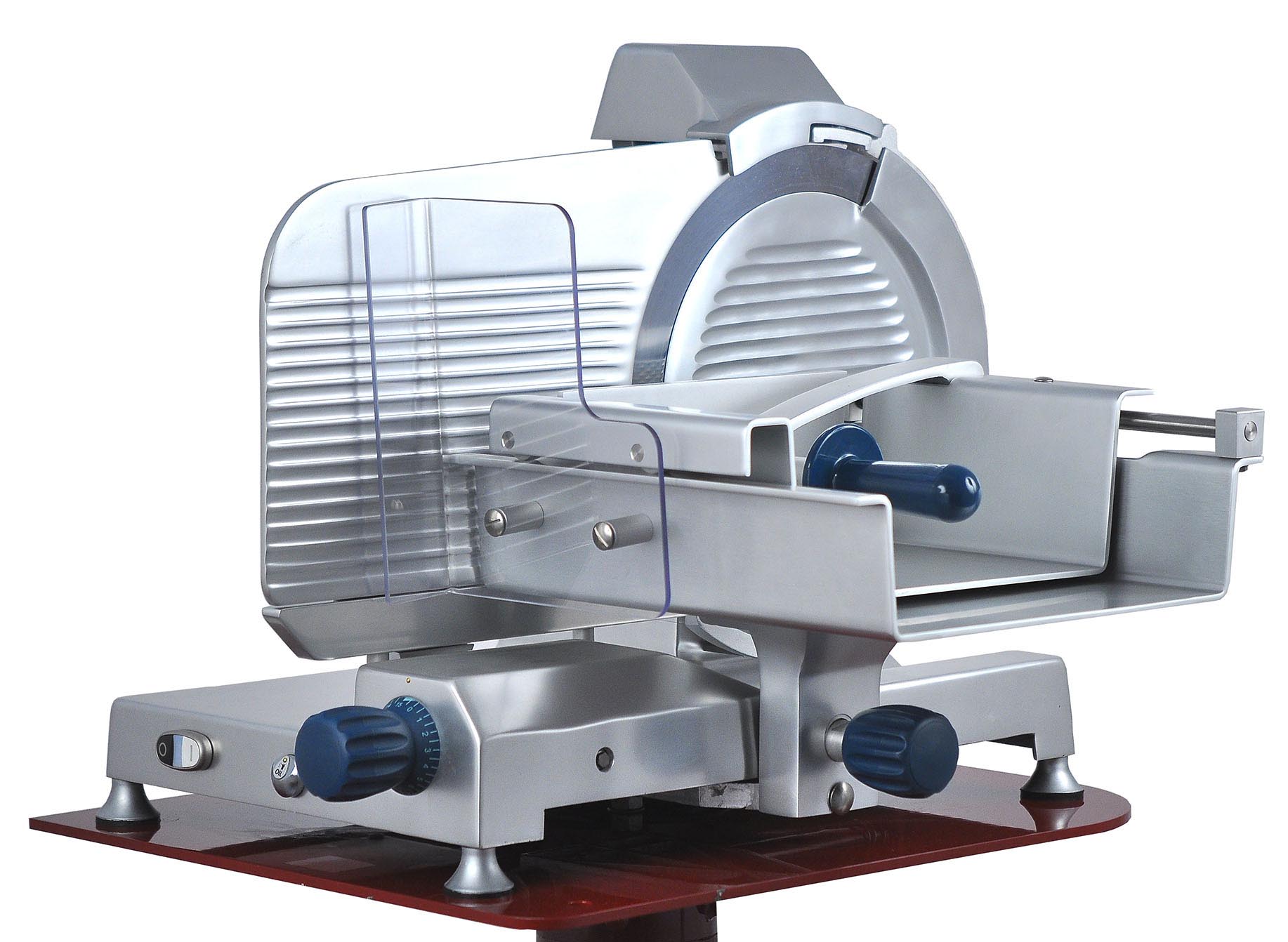

400TC
- Blade Diameter 400 mm.
- Double meat table makes it suitable for cutting fresh meat.
Dimensions
| Ref. | Description | 400TC | Technical drawing |
|---|---|---|---|
| A | Feet distance | 630 | |
| B | Footprint cut | 740 | |
| C | Max. distance beginning/end movement | 890 | |
| D | Feet distance | 430 | |
| E | Max. width distance | 790 | |
| F | Height | 580 | |
| G | Max. height distance | 640 | |
| H | Table length | 330 | |
| I | Table width | 400 |
Packaging
| Height | mm 760 |
| Width | mm 840 |
| Depth | mm 720 |
| Net Weight | kg 54 |
| Gross Weight | kg 61 |
| Volume m3 | 0,46 |
