Technical Data
| Mod. | A370G/L |
| Blade | ø mm 370 |
| Blade turns/1′ | n° 210 |
| Motor V.220 single phase | kw 0,570 |
| Carriage movement | mm 365 |
| Thickness adjuster | mm 13 |
| Cut’s capacity | ø mm 270 mm 220×275 |
| Slice/minute | min 25 – max 86 |
| Net weight | kg 52 |
A370G/L
- Blade diameter 370 mm.
- It combines extreme functionality and the practicality of an easy and simple cleaning.
- This slicer is particularly suitable for supermarkets, canteens and hospitals for cutting all types of sausages, meats, cheeses, where it is important not only for cutting precision, but also excellent performance in the hourly production of cold cuts.

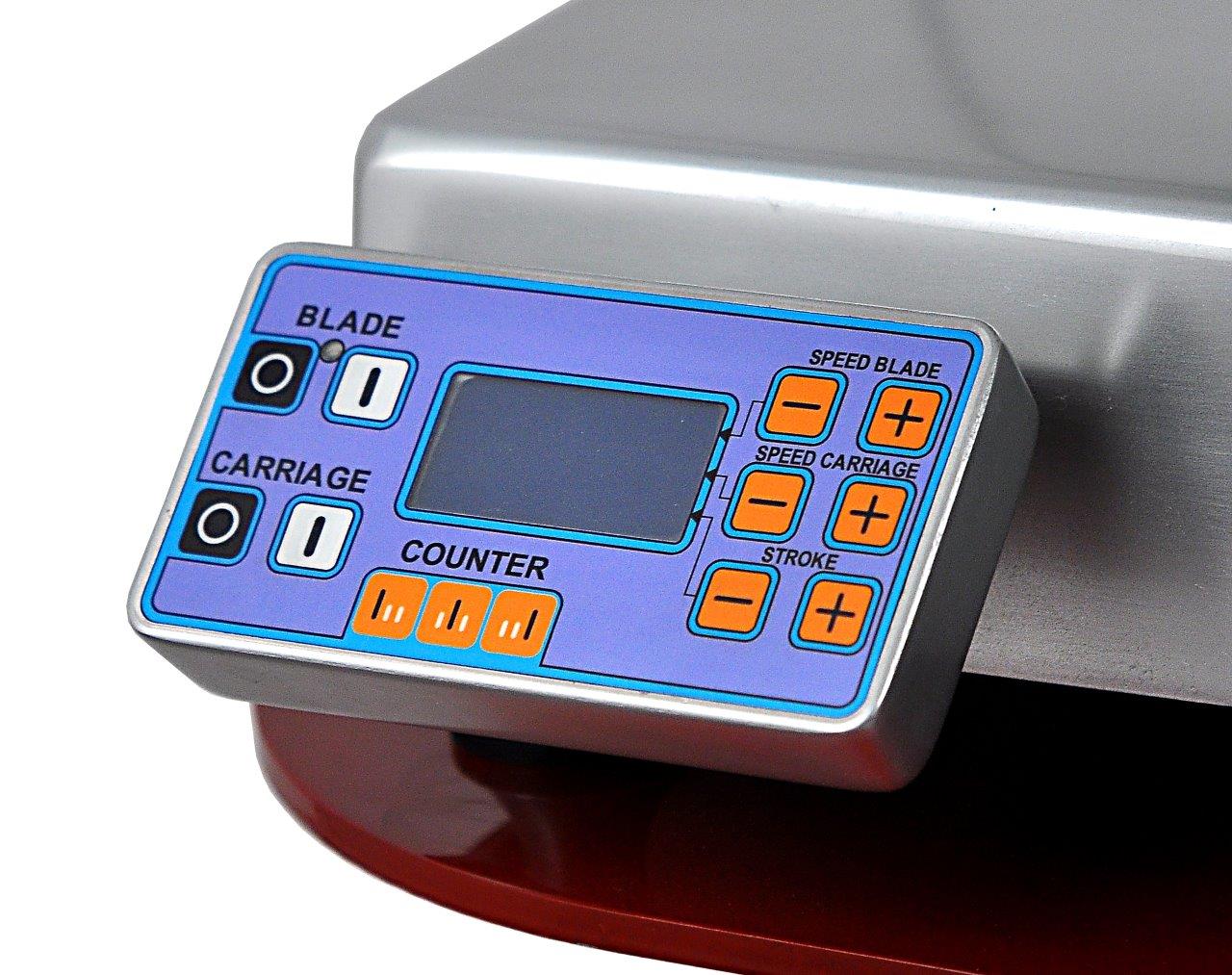

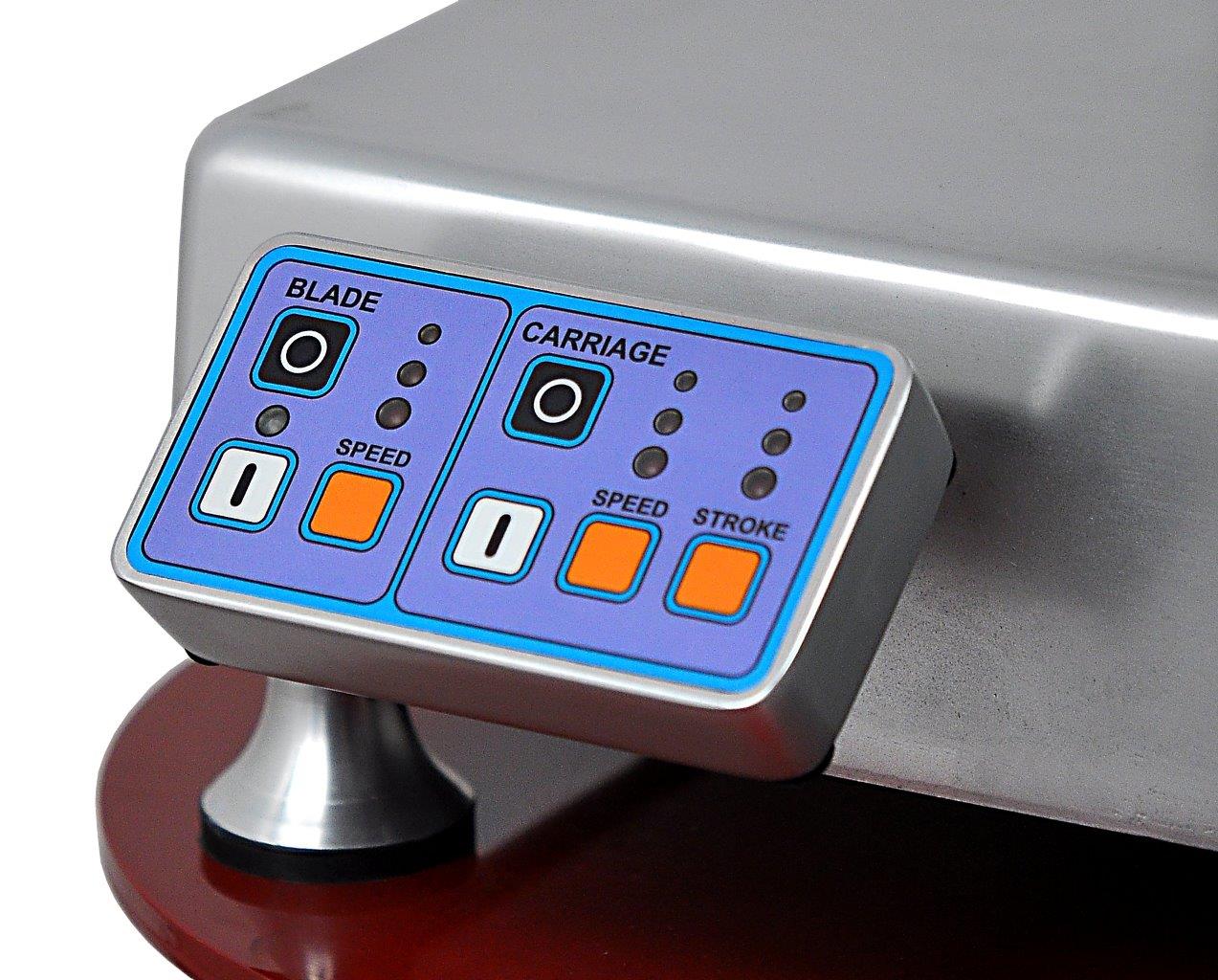

- This slicer has a simple and intuitive control panel that permits to select the speed of the blade and of the carriage.
- This panel allows the selection of the run of the carriage and the selection of the number of slices to cut.
- It can be used also manually.
- Equipped with tilting plate, for a fast and easier cleaning of the machine.
Dimensions
| Ref. | Description | A370G/L | Technical Drawing |
|---|---|---|---|
| A | Feet distance | 600 | |
| B | Footprint cut | 905 | |
| C | Max. distance beginning/end movement | 1030 | |
| D | Feet distance | 450 | |
| E | Max. width distance | 890 | |
| F | Height | 630 | |
| G | Max. height distance | 850 | |
| H | Table length | 255 | |
| I | Table length | 325 |
Packaging
| Height | mm 760 |
| Width | mm 840 |
| Depth | mm 720 |
| Net Weight | kg 52 |
| Gross Weight | kg 59 |
| Volume m3 | 0,46 |
