Technical Data
| Model | TWS220 |
| Blade | ø 220mm |
| Blade turns/1′ | n° 290 |
| Motor V.220 single phase | 0,130 kw |
| Motor V.220/380-400 three phase | 0,180 kw |
| Carriage movement | 240 mm |
| Thickness adjuster | 13 mm |
| Cut’s capacity | ø mm 150
mm 135×195 |
| Net weight | kg 14,5 |

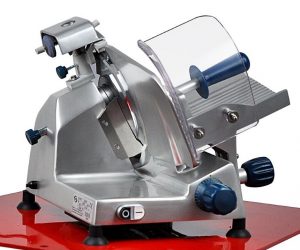

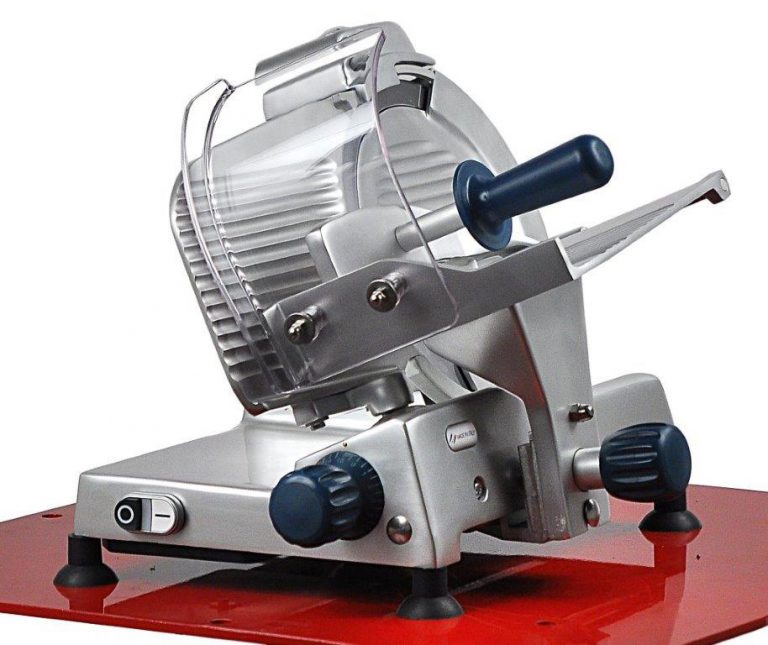

TWS220
- Blade diameter 220mm.
- Properly designed for internal furnishings.
- Inclination 25°.
- Totally manufactured with anodized aluminium parts.
- Belt drive with ventilated motor.
- Integrated sharpener it’s is easy to use and allows a correct sharpening.
- Provided with forged and hardened blades.
- Equipped with fixed ring blade guard that guarantee more security.
- Suitable for small shops and for family use.
Packaging
| Height | mm 540 |
| Width | mm 630 |
| Depth | mm 500 |
| Net weight | kg 14,5 |
| Gross weight | kg 17,5 |
| Volume m3 | 0,17 |
Dimensions
| Ref. | Description | TWS220 | Technical Drawing |
| A | Feet distance | 410 |  |
| B | Footprint cut | 480 | |
| C | Max. distance beginning/end movement | 610 | |
| D | Feet distance | 320 | |
| E | Max. width distance | 445 | |
| F | Height | 380 | |
| G | Max. height distance | 390 | |
| H | Table length | 195 | |
| I | Table width | 190 |
