Technical Data
| Mod. | 370G48 |
| Blade | ø mm 370 |
| Blade turns/1′ | n° 220 |
| Motor V.220 single phase | kw 0,37 |
| Motor V.220/380-400 three phase | kw 0,37 |
| Carriage movement | mm 365 |
| Thickness adjuster | mm 18 |
| Cut’s capacity | ø mm 250 mm 205X310 |
| Net weight | kg 42 |

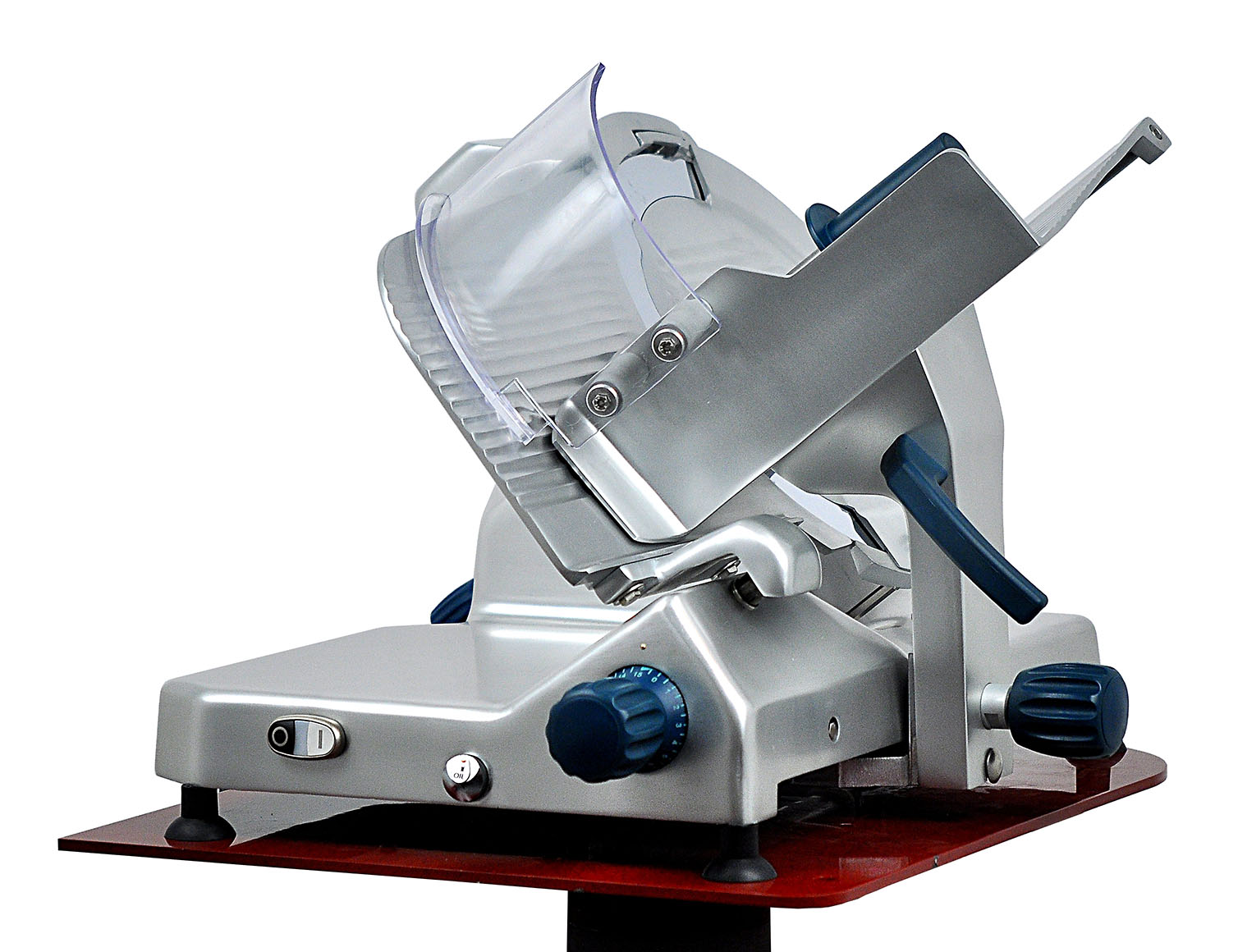

370G48
- Blade Diameter 370 mm.
- It is manufactured with a big base and a large plate behind the blade.
- Mod. 370G48 is fit for any kind of cutting thanks to their long carriage movement.
Dimensions
| Ref. | Description | 370G48 | Technical drawing |
|---|---|---|---|
| A | Feet distance | 640 | |
| B | Footprint cut | 710 | |
| C | Max. distance beginning/end movement | 800 | |
| D | Feet distance | 440 | |
| E | Max. width distance | 600 | |
| F | Height | 510 | |
| G | Max. height distance | 590 | |
| H | Table length | 280 | |
| I | Table width | 325 |
Packaging
| Height | mm 760 |
| Width | mm 840 |
| Depth | mm 720 |
| Net Weight | kg 42 |
| Gross Weight | kg 49 |
| Volume m3 | 0,46 |
